Incoloy alloy elbow
CURRENT POSITION：
Incoloy alloy elbow
CONTACT US
WhatsApp/WeChat/Mobile：+86 13563560199
Message
— PRODUCT INTRODUCTION

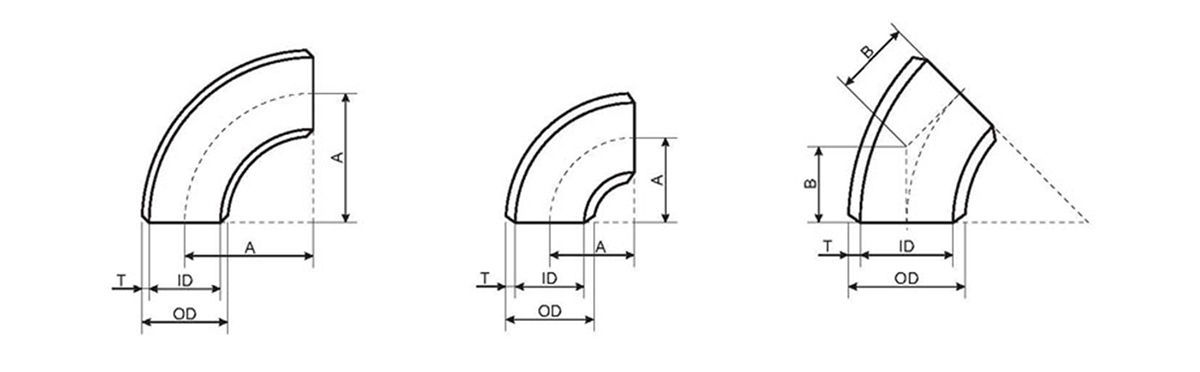

Elbow in piping system, elbow is a pipe fitting that changes the direction of piping.According to the Angle, there are 45° and 90°180° three most commonly used, in addition, according to the engineering needs also include 60° and other abnormal Angle bend.Elbow materials are cast iron, stainless steel, alloy steel, malleable iron, carbon steel, nonferrous metals and plastics.The method of connection with pipe is: direct welding (the most common way) flange connection, hot welding connection, electric welding connection, threaded connection and socket connection, etc.According to the production process can be divided into: welding elbow, stamping elbow, push elbow, casting elbow, butt welding elbow.Other names: 90 degree bend, right Angle bend, love and bend, etc.
— PRODUCT DISPLAY
— PRODUCT COMPOSITION
— PRODUCT DETECTION

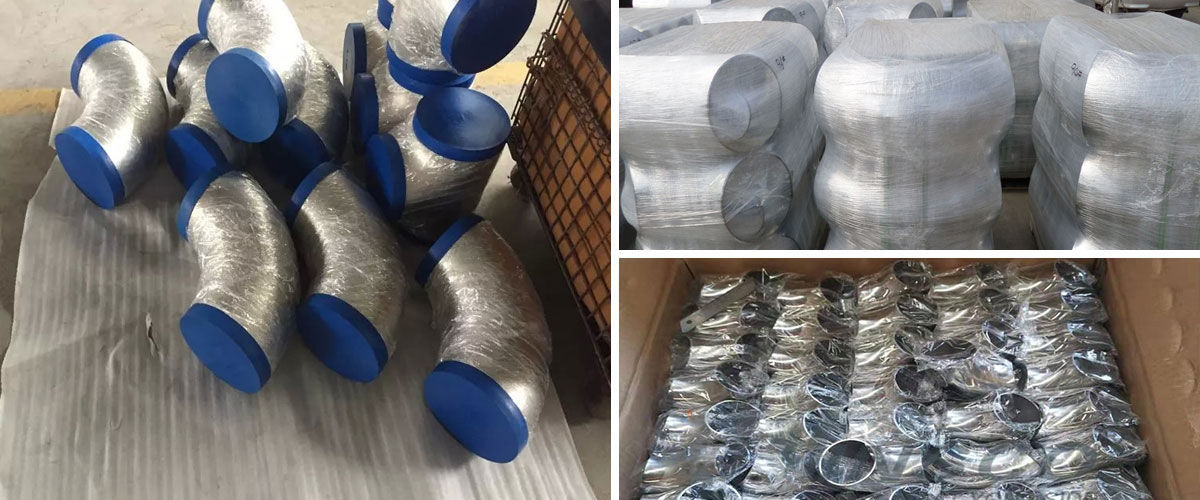

— PACKAGE DELIVERY
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
Standard export packing wooden pallet, wooden case, etc. (inside: waterproof paper, outside: steel belt and pallet)
